Specifications of condenser and evaporator coils |
||||
|
NO |
Tube Diameter(mm) |
Distance of hole/row(mm) |
Fin Style |
Fin Space(mm) |
|
1 |
Φ7 |
21*12.7 |
Louvered fin,Plain fin,Sine wave fin |
1.4~2.0 |
|
2 |
Φ7 |
21*18.9 |
Sine wave fin,Corrugated fin |
1.3~1.9 |
|
3 |
Φ7 |
25*21.65 |
Louvered fin |
1.5~3.8 |
|
4 |
Φ9.52 |
25.4*22 |
Louvered fin,Sine wave fin |
1.6~6.35 |
|
5 |
Φ9.52 |
25.4*22 |
Louverd fin,Plain fin,Sine wave fin |
1.6~3.2 |
|
6 |
Φ9.52 |
25*19 |
Louverd fin,Plain fin,Sine wave fin |
1.4~3.2 |
|
7 |
Φ9.52 |
25*21.65 |
Louvered fin,V ripple fin |
2.0~3.8 |
|
8 |
Φ9.52 |
25*25 |
Plain fin |
1.6~3.2 |
|
9 |
Φ9.52 |
25*21.65 |
Plain fin |
2.0~6.0 |
|
10 |
Φ9.52 |
25.4*22 |
Louvered fin,Plain fin,Sine wave fin |
1.6~6.35 |
|
11 |
Φ9.52 |
31.75*27.5 |
Louvered fin,Plain fin,Sine wave fin |
1.6~6.35 |
|
12 |
Φ12.7 |
31.75*27.5 |
Plain fin,Sine wave fin,V ripple fin |
1.8~6.0 |
|
13 |
Φ12.7 |
31.75*27.5 |
Louvered fin,Plain fin,Sine wave fin,V ripple fin |
1.7~2.2 |
|
14 |
Φ12.7 |
31.75*27.5 |
corrugated fin |
1.6~2.9 |
|
15 |
Φ15.88 |
38.1*33 |
Plain fin,Sine wave fin,V ripple fin |
2~4 |
|
1.5~4.1 |
1.5~4.2 |
1.5~4.3 |
1.5~4.4 |
1.5~4.5 |
We can serve for more types of evaporator according to every customers' drawing and requirement
|
|
Series 1 |
Series 2 |
Series 3 |
Series 4 |
|
Tube Diameter |
Φ 9.52 |
Φ9.52 |
Φ7 |
Φ 7.94 |
|
Hole Space(mm) |
25 |
25.4 |
20.5 |
22 |
|
Row Space(mm) |
21.65 |
22 |
12.7 |
19.05 |
|
Tube Material |
Copper, Aluminum |
Copper, Aluminum |
Copper, Aluminum |
Copper, Aluminum |
|
Type of Tube |
Smooth Tube |
Smooth Tube |
Smooth Tube |
Smooth Tube |
|
Fin Surface |
Louver Fin |
Flat Fin |
Flat Fin |
Louver Fin |
|
Fin Type |
Hydrophilic Foil |
Hydrophilic Foil |
Hydrophilic Foil |
Hydrophilic Foil |
|
Fin Thickness(mm) |
0.095~0.2 |
0.095~0.2 |
0.095~0.2 |
0.095~0.2 |
|
Fin Space(mm) |
1.4~2.3 mm |
1.4~2.3 mm |
1.1~1.8mm |
1.4~2.0 mm |
Underground garages need good cooling and heating systems because theyre basically sealed up tight, with not much air moving around. Cars bring in all this exhaust and heat, plus the place can get really humid sometimes. It feels like without proper setup, it would just build up and make everything uncomfortable.
The main job of these systems is to keep temperatures steady so people walking through or working there dont feel too hot or cold. They also handle humidity, which stops stuff like water dripping everywhere that could rust things out or make floors slippery. Ventilation ties right into it, pulling out bad gases from the cars, like CO and NOx. I think thats a big part, since no one wants to breathe that junk.
Some setups even divide the garage into zones, so one area might be cooler if its busier or something. Air gets pushed out through ducts to different spots, and then exhausted out to clear the air. It protects the building too, like keeping pipes from freezing or equipment from overheating. Vehicles parked there stay safer from moisture damage, I suppose.
Energy wise, they use controls to run efficiently, not wasting power. And everything has to meet those safety rules for ventilation underground. Its kind of messy how it all connects, the heating pulling double duty with the cooling sometimes. That part stands out, how it prevents bigger problems down the line.

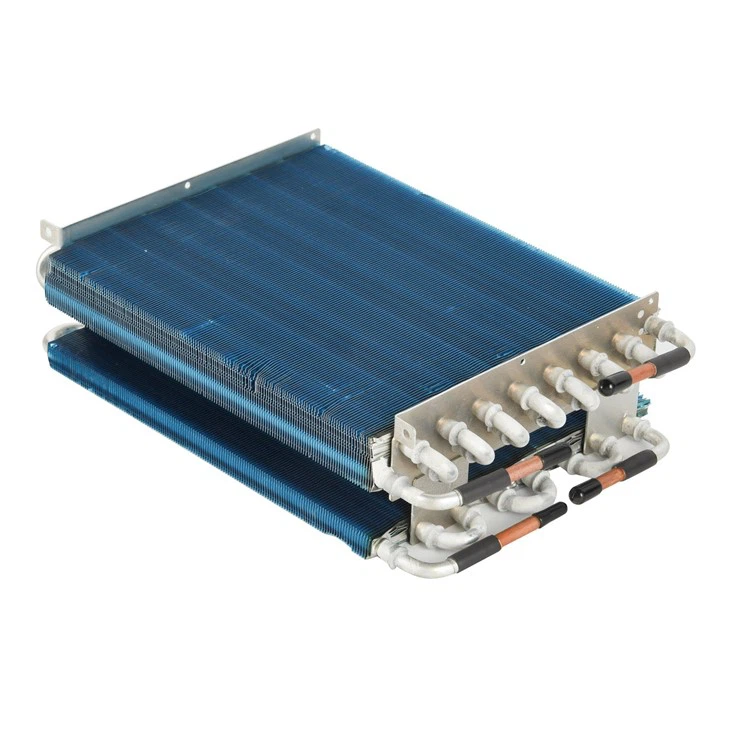

Choose us, make better Evaporator Coils For Underground Garage Cooling And Heating System.
Our Advantages
- We have customized products for many customers, following are some projects we did before.
- We can provide designing data and production drawings.
- We promise we use the design software sold by a well-known European HAVC software company. Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world.
- All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Packaging & Shipping
The normal package is wooden box. If export to european countries, the wooden box will be fumigated. If container is too tighter, we will use pe film for packing or pack it according to customers special request.
lead Time
20 - 40 days
Payment Terms
50% T/T payment in advance, 50% T/T payment before delivery
Packing Condition
Standard export packing or customized packaging
