Specifications of condenser and evaporator coils |
||||
|
NO |
Tube Diameter(mm) |
Distance of hole/row(mm) |
Fin Style |
Fin Space(mm) |
|
1 |
Φ7 |
21*12.7 |
Louvered fin,Plain fin,Sine wave fin |
1.4~2.0 |
|
2 |
Φ7 |
21*18.9 |
Sine wave fin,Corrugated fin |
1.3~1.9 |
|
3 |
Φ7 |
25*21.65 |
Louvered fin |
1.5~3.8 |
|
4 |
Φ9.52 |
25.4*22 |
Louvered fin,Sine wave fin |
1.6~6.35 |
|
5 |
Φ9.52 |
25.4*22 |
Louverd fin,Plain fin,Sine wave fin |
1.6~3.2 |
|
6 |
Φ9.52 |
25*19 |
Louverd fin,Plain fin,Sine wave fin |
1.4~3.2 |
|
7 |
Φ9.52 |
25*21.65 |
Louvered fin,V ripple fin |
2.0~3.8 |
|
8 |
Φ9.52 |
25*25 |
Plain fin |
1.6~3.2 |
|
9 |
Φ9.52 |
25*21.65 |
Plain fin |
2.0~6.0 |
|
10 |
Φ9.52 |
25.4*22 |
Louvered fin,Plain fin,Sine wave fin |
1.6~6.35 |
|
11 |
Φ9.52 |
31.75*27.5 |
Louvered fin,Plain fin,Sine wave fin |
1.6~6.35 |
|
12 |
Φ12.7 |
31.75*27.5 |
Plain fin,Sine wave fin,V ripple fin |
1.8~6.0 |
|
13 |
Φ12.7 |
31.75*27.5 |
Louvered fin,Plain fin,Sine wave fin,V ripple fin |
1.7~2.2 |
|
14 |
Φ12.7 |
31.75*27.5 |
corrugated fin |
1.6~2.9 |
|
15 |
Φ15.88 |
38.1*33 |
Plain fin,Sine wave fin,V ripple fin |
2~4 |
|
1.5~4.1 |
1.5~4.2 |
1.5~4.3 |
1.5~4.4 |
1.5~4.5 |
We can serve for more types of evaporator according to every customers' drawing and requirement
|
|
Series 1 |
Series 2 |
Series 3 |
Series 4 |
|
Tube Diameter |
Φ 9.52 |
Φ9.52 |
Φ7 |
Φ 7.94 |
|
Hole Space(mm) |
25 |
25.4 |
20.5 |
22 |
|
Row Space(mm) |
21.65 |
22 |
12.7 |
19.05 |
|
Tube Material |
Copper, Aluminum |
Copper, Aluminum |
Copper, Aluminum |
Copper, Aluminum |
|
Type of Tube |
Smooth Tube |
Smooth Tube |
Smooth Tube |
Smooth Tube |
|
Fin Surface |
Louver Fin |
Flat Fin |
Flat Fin |
Louver Fin |
|
Fin Type |
Hydrophilic Foil |
Hydrophilic Foil |
Hydrophilic Foil |
Hydrophilic Foil |
|
Fin Thickness(mm) |
0.095~0.2 |
0.095~0.2 |
0.095~0.2 |
0.095~0.2 |
|
Fin Space(mm) |
1.4~2.3 mm |
1.4~2.3 mm |
1.1~1.8mm |
1.4~2.0 mm |
A magazine plant is basically a place where they print and publish stuff like magazines, not some kind of explosives thing. The cooling and heating setup there is way different from what you see in food processing or chemical factories. Those other places might focus on safety or keeping things from spoiling, but here its all about protecting the paper and ink so the printing comes out right. Paper absorbs moisture easily, thats hygroscopy I guess, and it makes everything tricky.
If theres too much humidity, the paper starts to expand and curl up, which messes with how it feeds into the machines. On the other hand, too little moisture and it shrinks, gets brittle, or even builds up static that causes jams. Ink can dry out too quick if its too warm, so they have to keep things stable. I think thats why controlling temperature and air flow is such a big deal, it keeps the whole production from going haywire.
They aim for temperatures around 20 to 24 degrees Celsius, which is like 68 to 75 Fahrenheit, and humidity between 45 and 55 percent. That range helps everything stay consistent. For equipment, theres big HVAC systems, chillers to cool things down, air handling units that move the air around, and ducts to direct it where needed.
Cooling specifically stops the machines from getting too hot during long runs, and it prevents the ink from setting too fast before its supposed to. Paper stability is key too, without it you get all sorts of defects. It feels like this part gets a bit overlooked, but yeah, without proper cooling the whole operation could just fall apart.

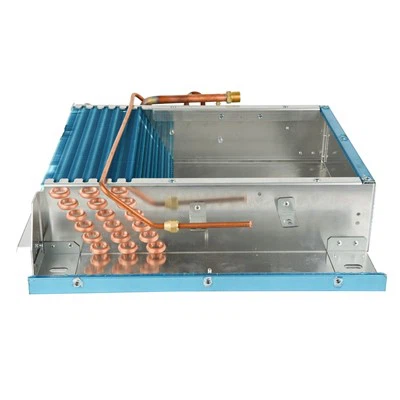

Choose us, make better Condenser Coils For Magazine Plants Cooling And Heating System.
Our Advantages
- We have customized products for many customers, following are some projects we did before.
- We can provide designing data and production drawings.
- We promise we use the design software sold by a well-known European HAVC software company. Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world.
- All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Packaging & Shipping
The normal package is wooden box. If export to european countries, the wooden box will be fumigated. If container is too tighter, we will use pe film for packing or pack it according to customers special request.
lead Time
20 - 40 days
Payment Terms
50% T/T payment in advance, 50% T/T payment before delivery
Packing Condition
Standard export packing or customized packaging
Hot Tags: condenser coils for magazine plants cooling and heating system, China condenser coils for magazine plants cooling and heating system manufacturers, factory
